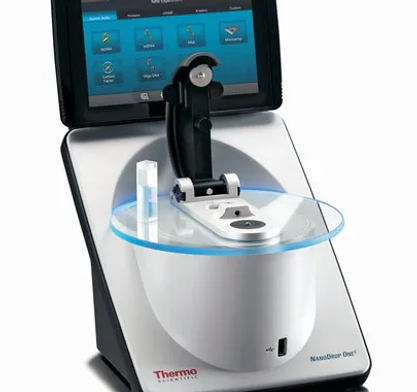

NANODROP ONE CW
NanoDrop™ One CW Prevent costly delays with an enhanced understanding of sample quality using the Thermo Scientific™ NanoDrop™ One Microvolume UV-Vis Spectrophotometers.
NanoDrop™ One CW Prevent costly delays with an enhanced understanding of sample quality using the Thermo Scientific™ NanoDrop™ One Microvolume UV-Vis Spectrophotometers.
Innovative Thermo Scientific™ Acclaro™ Sample Intelligence technology is built into every instrument for improved measurement accuracy and contaminant identification. Quantify and qualify DNA, RNA, and protein samples in seconds with only 1-2 µL, and obtain full-spectral data before you decide to use samples in downstream applications. Additional cuvette positions are also available.
Move closer to your research goals with an ergonomic, standalone spectrophotometer with a high-resolution, touchscreen interface. Powerful auto-range pathlength technology facilitates accurate measurements for concentrated samples with no need for dilutions. This is your innovative alternative to the NanoDrop 2000/2000c Spectrophotometers.
Specifications:
Certifications/Compliance: All NanoDrop instruments are approved by CE and UL/CSA.
Compatibility: DYMO LabelWriter 450 printer, Bluetooth keyboard, mouse, and barcode reader
Concentration: dsDNA: Pedestal: 27,500 ng/μL BSA (IgG): Pedestal: 820 (400) mg/mL
Connections: Three USB-A ports, Ethernet, Bluetooth™ and Wi-Fi (Only available on instruments with Wi-Fi/Bluetooth support)
Description: NanoDrop OneC Microvolume UV-Vis Spectrophotometer with Wi-Fi
Detection Range: dsDNA: Pedestal: 2.0 ng/μL, Cuvette: 0.2 ng/μL, BSA (IgG): Pedestal: 0.06 (0.03) mg/mL, Cuvette: 0.006 (0.003) mg/mL
Detector Type: 2048-element CMOS Linear Image Sensor
Display: 7 in. High Definition Color Display, 1280 x 800 pixels
Dimensions (L x W x H): 20 x 25.4 x 32.3 cm (8 x 10 x 12.7 in.)
Languages: English, French, German, Spanish, Polish, Chinese, Japanese, Korean
Light Source: Xenon Flash
Spectral Bandwidth: ≤1.8 nm (FWHM at Hg 254 nm)
Voltage: 12 VDC
Wavelength Range: 190 to 850 nm
For Use With (Application): Nucleic Acid A260, A260/A280, A260/A230, and Labeled Nucleic Acids; Protein A280 and A205, Protein Pierce 660, Protein Bradford, Protein BCA, Protein Lowry, Labeled Proteins, OD600, Kinetics, UV-Vis, and Custom Methods
Keypad: Built-in touchscreen, multipoint capacitive touch
Measurement Time: 8 seconds
Pathlength: 0.030 to 1.0 mm (auto-ranging)
Photometric Accuracy: 3% at 0.97 A, 302 nm, (Absorbance expressed at Abs/mm at 25°C)
Photometric Range: 10 mm equivalent: Pedestal: 0–550 A; Cuvette: 0–1.5 A
Power Consumption: Operating: 12 to 18 W; Standby: 5 W
Processor: Android™
Repeatability: Typical: 0.002 A (1.0 mm path) or 1%CV, whichever is greater (SD of 10 individual measurements at 0.97 A
Sample Temperature: Temperature Control (cuvette only) 37 °C
Sample Volume (Metric): Minimum 1μL
System Requirements: Windows™ 8.1 and 10, 64-bit
Wavelength Accuracy: ±1 nm
Weight (English): 7.9 lb.
Weight (Metric): 3.6 kg
Unit Size: Each
Acclaro Sample Intelligence Technology:
Acclaro technology enhances user understanding of sample quality while delivering accurate quantitative measurements. Early identification of contaminants can prevent failure of downstream applications and save days of troubleshooting.
Verify sample quality in seconds - identify contaminants and obtain corrected concentration results.
Access information through alerts – receive instant feedback about sample quality with on-demand technical support and guided troubleshooting.
Rely on accurate results – ensure measurement integrity with embedded sensor and digital image analysis.
Identify nucleic acid contaminants such as RNA contamination in dsDNA samples and chemical contaminants such as phenol in RNA samples.
NanoDrop One/Nanodrop OneC PC Software with 21 CFR Part 11 Compliance
New PC Control software allows users to control the instrument from an Ethernet-connected PC - free download here
Optional Thermo Scientific Security Suite for NanoDrop One/OneC allows the instrument to be used in a 21 CFR Part 11 compliant lab. Features include:
User account access
Audit trail
Electronic signatures
Automated data backup, and more
NanoDrop One/NanoDrop OneC Enhancements:
Ergonomic, standalone design – integrated Android™ tablet eliminates the need for a separate computer and provides seamless data transfer via Wireless*, Ethernet, or USB.
Auto-Measure and Auto-Blank functions – multi-sample processing can be streamlined with instant measurements that occur when the pedestal arm is down. These functions can be turned ON or OFF with a single tap on the screen.
Wider dynamic range – no dilutions required for highly concentrated samples (dsDNA at 27,500 ng/µL) with auto-range pathlength technology
Integrated Learning Center - an archive of technical support documents and educational animations at your fingertips.
NanoDrop OneC Highlights
Contains both pedestal and cuvette positions to expand experimental flexibility and increase the dynamic range.
Measure dilute samples, perform kinetics experiments, and take optical density measurements of bacterial cultures.
Cuvette position includes temperature control and stirring.
